Food & beverage vending / Commercial equipment

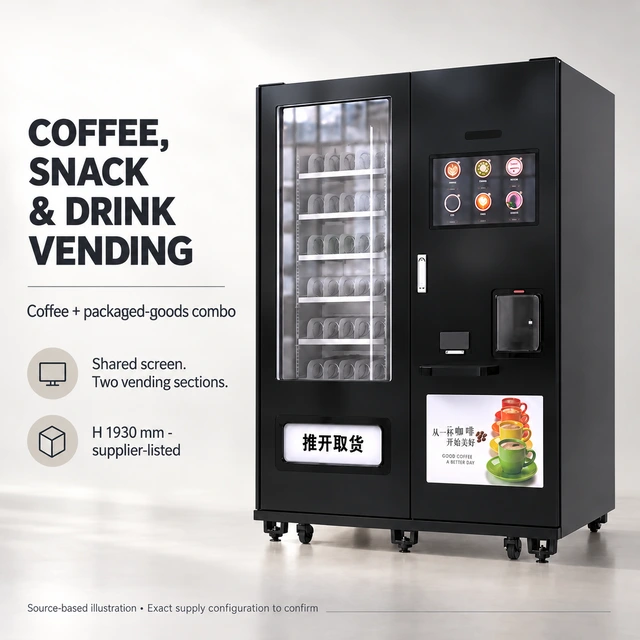

Coffee, Snack & Drink Combo Vending Machine
One customer interface; two distinct replenishment and maintenance tasks.
Coffee, Snack & Drink Combo Vending Machine
01 / 12
Model presentation. Confirm your ordered version in the quote.
A closer look at this model
One customer interface; two distinct replenishment and maintenance tasks.
The coffee/snack/drink combo reference combines a glass-front snack/drink section on the left with a coffee section on the right. Coffee preparation adds water, ingredients, cups and beverage cleaning requirements to packaged-goods vending. The official 2024 catalogue identifies the same cabinet and lists a height of 1930 mm, width of 1460 mm and depth of 900 mm. These are supplier reference dimensions, not a measurement of a local unit. Build the order around the actual packages and drinks. Send packet and bottle dimensions, planned coffee ingredients, cup/lid samples, destination, payment method and service route. Ask for a tray layout, a drink configuration list, electrical version, water arrangement, cleaning procedure and a demonstration that includes failed-vend recovery. Separate machine, payment hardware, ingredients/consumables, software charges, spare parts and freight in the quotation. Brand and function customization is typically available for orders of around 10–20 machines, using access to existing tooling for these machine types. Send the quantity for each selected model, destination, artwork and required function changes. The quotation will confirm the supported scope, customization cost and production schedule. Product and venue images are reference illustrations for configuration planning, not photographs of a local unit or a completed customer installation. Confirm the exact ordered cabinet, components and finishes in the quotation.
Model highlights
This reference combines fresh coffee preparation with packaged snack and drink vending.
A shared touchscreen and payment system serves the two sections.
The left glass-front packaged-goods section has its own collection hatch; the right coffee section has separate cup and manual lid collection areas.
Official brochure lists H1930 × W1460 × D900 mm and approximately 385 kg including the water chiller.
Confirm individual packet, bottle, cup and lid fit with samples before approving the final configuration.
Brand and function customization is typically available for around 10–20 machines; exact scope and quotation depend on the selected model and requested changes.
Your model checklist
Start with the right fit.
Consider this format where the operator can service both packaged goods and a coffee preparation system. Compare the 1460 mm supplier-listed width with the entry route, the door opening and service space. Do not assume the closed cabinet footprint is its total operating area or that a food item is compatible simply because it fits on a shelf.
Ingredients, refill and cleaning workflow
Confirm ingredients, refill and cleaning workflow for the exact configuration in your quotation.
Water, drainage, cooling and electrical load
Confirm water, drainage, cooling and electrical load for the exact configuration in your quotation.
Attended or unattended operation and destination requirements
Confirm attended or unattended operation and destination requirements for the exact configuration in your quotation.
01The machine, up close
See how it works.
3 views
01The machine, up close
See how it works.

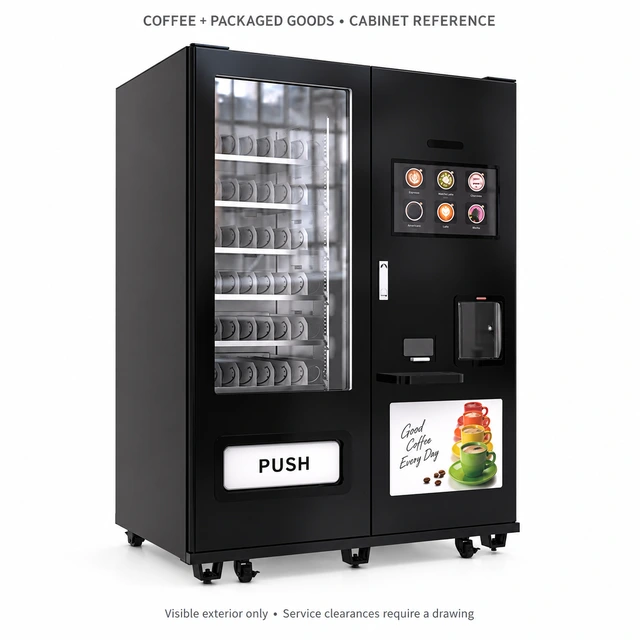

Which parts belong to the offered cabinet?
Reference illustration of the packaged-goods section, coffee section and collection openings.

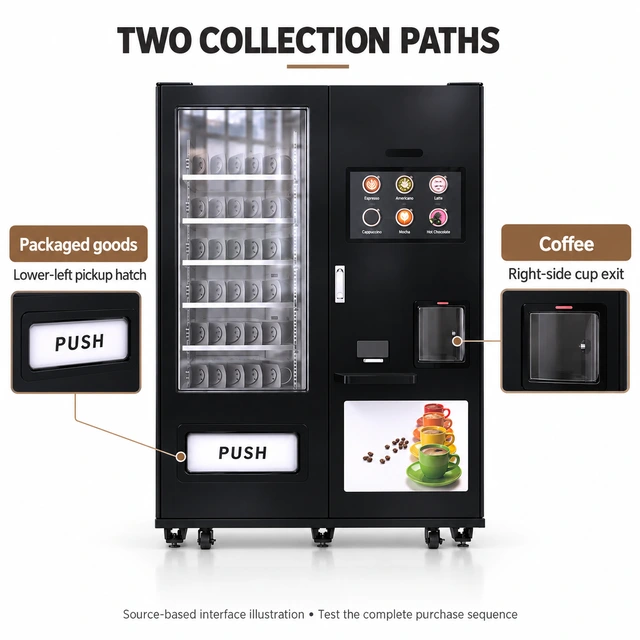

How do coffee and packaged-goods collection differ?
Reference illustration. Coffee and packaged goods use separate collection areas.

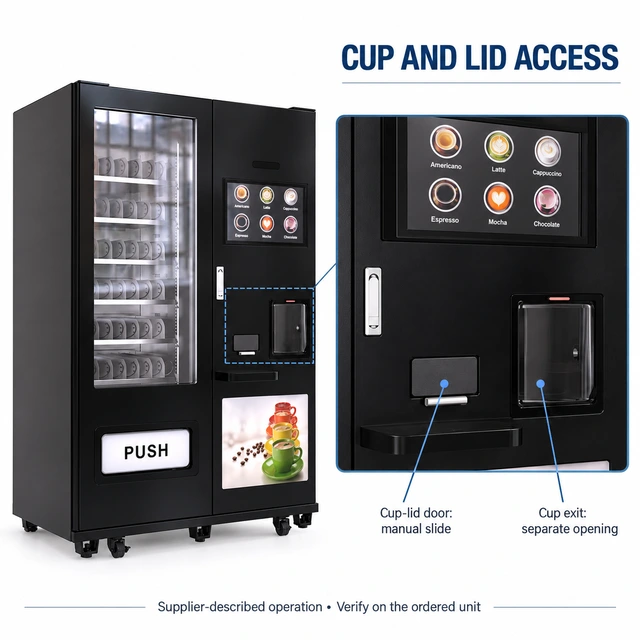

How are cups and lids collected?
Reference illustration of separate cup and manual lid access; automatic lidding is not specified.
02Plan its place
Match the space and the setup.
5 views
02Plan its place
Match the space and the setup.

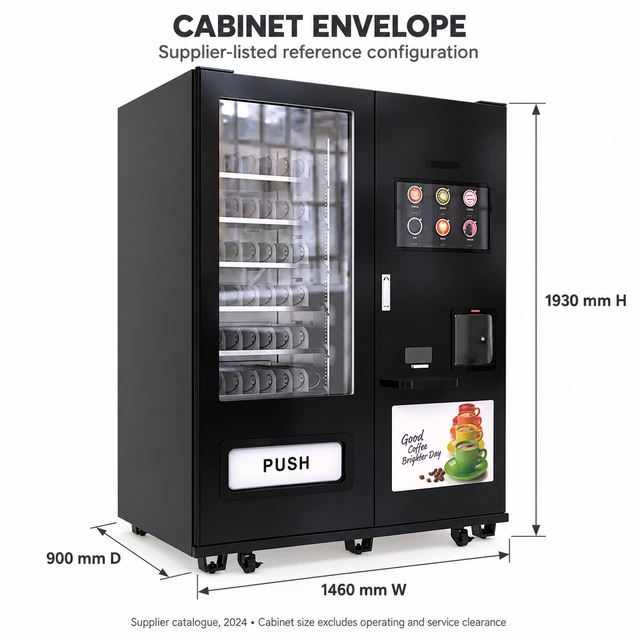

Will the cabinet fit the delivery route?
Allow separately for operating access, refilling and the delivery route. Packed size is confirmed in the quotation.
View reference specificationsWill my packets and bottles vend reliably?

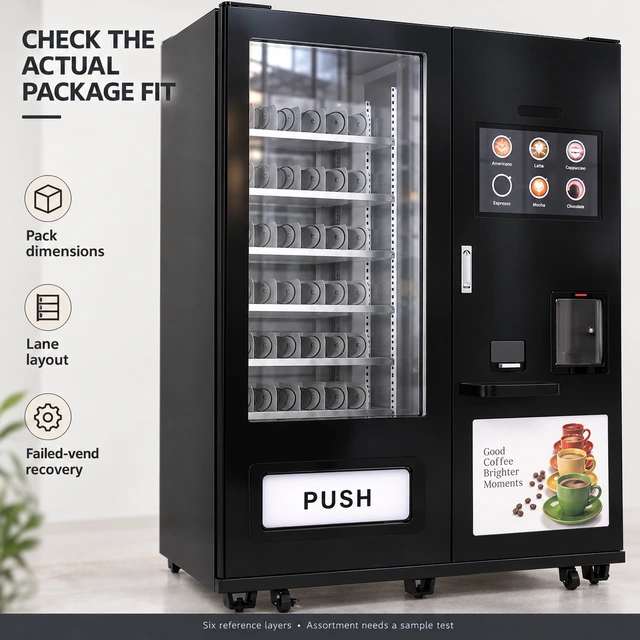

Confirm sample dimensions, weight, lane layout and failed-vend recovery before ordering.
Can the pantry support replenishment and cleaning?
Planning illustration. Check circulation, water supplies and the operator service route.

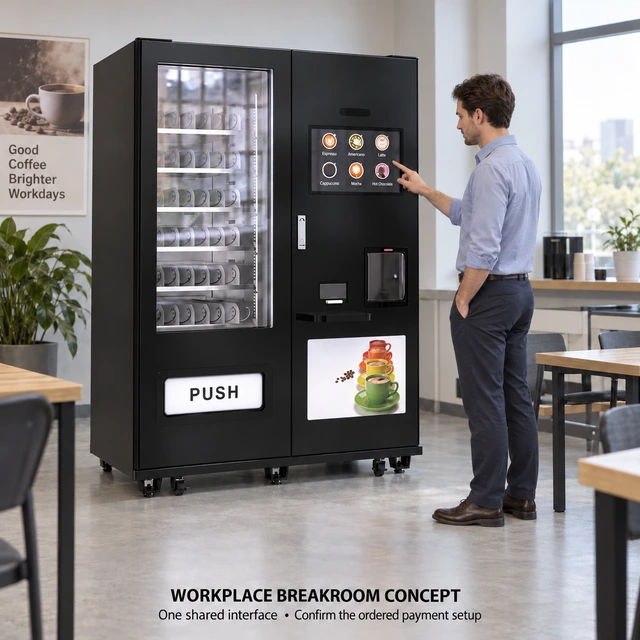

How will customers use the shared screen?
Planning illustration of customer access; confirm the final screen and payment setup.

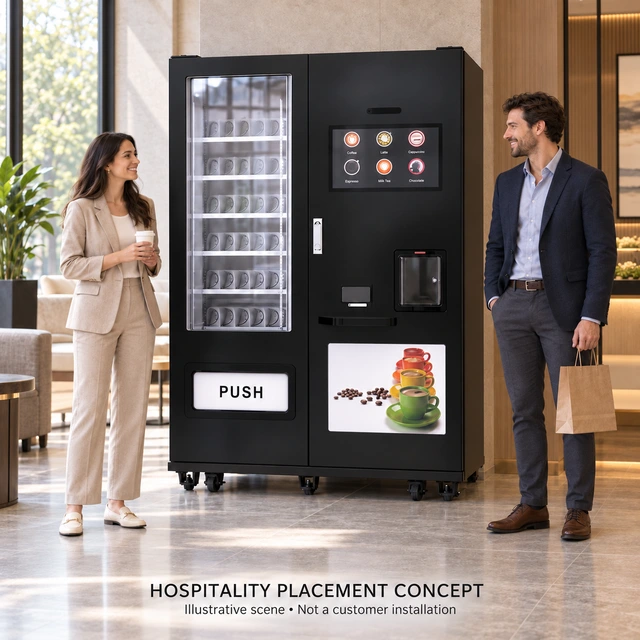

Can guests and service staff use the location?
Planning illustration, not a customer installation. Confirm access, operating hours and service responsibilities.
03Your brand and operation
Make it part of your business.
1 view
03Your brand and operation
Make it part of your business.

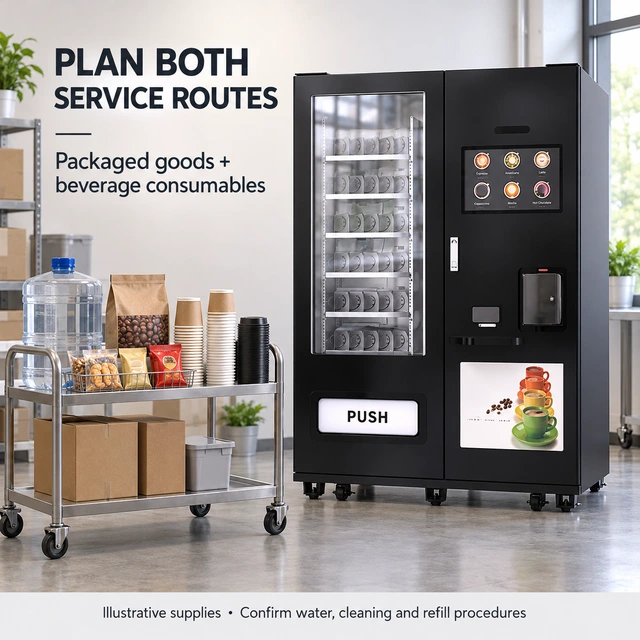

Who will maintain both vending sections?
Planning illustration. Confirm water replacement, ingredient refill, beverage cleaning and service access.
04From model to order
Build a clear quotation.
1 view
04From model to order
Build a clear quotation.

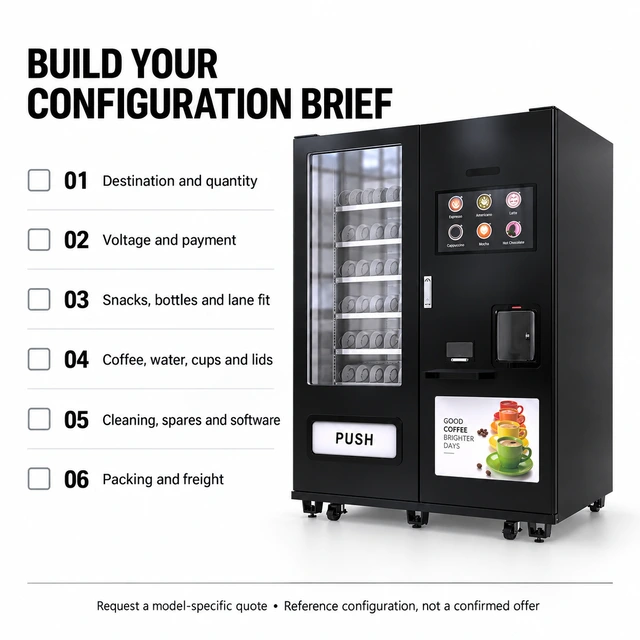

What should I provide for an accurate quotation?
Send destination, quantity per model, package and cup samples, electrical supply, payment needs and customization scope.
Request this model’s quoteBrand & function customization
Your machine.
Your direction.
Brand and function customization is typically available for orders of around 10–20 machines.
Branding direction. Final artwork and configuration are approved for your order.
Build your quote brief
What does your venue need?
Coffee, Snack & Drink Combo Vending Machine
Standard finish · 1–5 machines
Start from an existing machine design. Share the quantity for each model and required function changes. Available options, customization costs and production schedule are confirmed for your selected model and destination.
Before you commit
Specifications & order details.
From the floor plan to the freight quote.
Make the next decision with the right information.
Start with the source values
Key supplier specifications.
Supplier reference: Coffee, Snack & Drink Combo Vending Machine
- Supplier-listed size (W × D × H)
- 1460 × 900 × 1930 mm; official 2024 catalogue
- Power
- Whole-machine table lists 2250 W rated / 80 W standby; reconcile separately listed module loads before circuit sizing
- Supplier-listed net weight
- Approximately 385 kg including water chiller
- Reference model
- Coffee, Snack & Drink Combo Vending Machine
Reference data. Confirm the final dimensions, power supply, payment setup and model before ordering.
Full supplier specifications13 source fields
- Reference model
- Coffee, Snack & Drink Combo Vending Machine
- Supplier-listed size (W × D × H)
- 1460 × 900 × 1930 mm; official 2024 catalogue
- Supplier-listed net weight
- Approximately 385 kg including water chiller
- Screen
- 21.5-inch touchscreen, supplier-listed
- Electrical versions
- AC 220–240 V, 50–60 Hz OR AC 110–120 V, 60 Hz; confirm the ordered version
- Power
- Whole-machine table lists 2250 W rated / 80 W standby; reconcile separately listed module loads before circuit sizing
- Water supply
- Pump-fed purified water; catalogue lists two 19 L bottles
- Cup / lid storage
- 150 cups (12 oz, listed diameter 90 mm); 100 lids
- Snack capacity
- Six layers; total capacity depends on slot and lane arrangement and package dimensions
- Operating environment
- Catalogue states 4–38°C ambient; this is not the refrigeration setpoint
- Payment
- Supplier lists cash, QR, bank/prepaid card and barcode options; installed regional modules to confirm
- Price / lead time
- Configuration quote required; not yet quoted
- Customization
- Brand and function changes typically available for around 10–20 machines; quantity per model, scope and cost to confirm in quotation
Confirm for your project.
Review these model questions with your venue, destination and order scope.
Operation & consumables2 questions
- Which coffee recipes, ingredients and cup/lid sizes will you use?
- Who will refill both sections, replace water, clean beverage parts and handle refunds?
Market & configuration3 questions
- What country, power supply, payment processor and network connection must the order support?
- Can you provide the final tray layout, electrical load schedule, software charges and parts list?
- Do you need a standard machine, branding, function changes, or both? Please send quantity per model, artwork and destination.
Order & delivery1 question
- Which packaged snacks and drinks, including dimensions and weight, will you load?
To your destination
Share your country and port. Separate freight, duties, local delivery and unloading in the agreed shipping terms.
Once it arrives
Confirm warranty coverage, spare parts, troubleshooting, parts freight and local labor before paying a deposit.
CONFIDENCE BEFORE COMMITMENT
The right machine.
The right paperwork.
Buying for another country? Request the documents for your exact model and configuration, so you can review them before placing an order.
YOUR PRE-ORDER DOCUMENT PACKKnow what you’re buying.
Know what you’re buying.
Know what to ask for.
Send the model, destination country and any requirements from your importer. We’ll confirm which supplier documents are available for the quoted machine.
Request my model’s documents- Model & configurationMatch the model reference, power supply and selected options to the available technical file.
- Destination requirementsReview applicable declarations, test reports and certificates with your importer before shipment.
- Setup & ongoing supportRequest operating instructions, a spare-parts list and the agreed support and warranty terms.
Documents apply to the model and scope shown. Final configuration and destination requirements are confirmed with your quotation.
Your quotation separates equipment, selected customization, packing and shipping where relevant. Destination duties, taxes, local delivery and installation depend on the agreed terms. Share your quantity, country and port for a useful estimate.
Warehouse crating
Agree the crate, protection and packed dimensions for your equipment.
Loading at origin
Plan how the packed machine will be handled and loaded.
Ocean freight
Define the freight route, documents and destination charges in your quote.
Destination unloading
Confirm unloading access, handling equipment and local responsibilities.
Visual references, not shipment records. Packing and delivery are agreed in your quotation.
BUILT AROUND YOUR ORDER
From model to delivery.
We bring your Coffee, Snack & Drink Combo Vending Machine configuration, custom requirements and delivery scope into one equipment proposal.
- 01Model & configuration
Confirm the build, branding and local setup.
- 02Packing & route
Agree packed measurements and the shipping scope.
- 03Handover & support
Review unloading, available manuals and spare parts.
From shortlist to quotation
Let’s build your quote.
Tell us where it’s going. We’ll review the machine, your selected options and the shipping scope.
Coffee, Snack & Drink Combo Vending Machine1–5 machinesStandard finishDiscuss with meConfirm for my marketEdit configuration
